Ztw 1/10 3450kv Mtr 60a Esc Combo
-
Brand:ZTW
ZTW 410602125 1:10 Beast combo SL 60A ESC 3450KV 540 4P SL 3650B 2.5Y
Get the best Value in this beast 60a 3450kv motor/esc/program card combo. This is an ideal upgrade for 1/10 on road 4wd or off road 2wd and light 4wd vehicles.

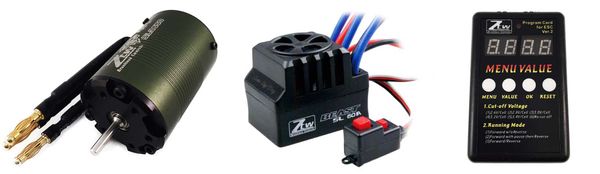

This combo contains the following motor and esc, with program card.
Beast SL60A ESC
When power and performance matters, look no further than the ZTW Beast series 60amp Waterproof electronic speed controller. Finely tuned and tested for proven quality, performance and reliability in 1/10 scale short course truck, 2wd monster truck and buggy applications.
Smooth sensorless operation, compatible with all major brand 4-pole brushless sensorless motors. Program card (ztw-120000010) available to update firmware and adjust a wide range of parameters.
Accurate low voltage cut-off protection, over-heat protection, and signal loss protection.
Will require soldering of motor and battery plugs, Bullet plugs included for motor wires.
:SPECIFICATIONS:
Max continuous current: 60amp
Burst current: 380amp
BEC output: 6v/2amp
Motor Type: 4 pole sensorless brushless
Battery: 5-10 cells NiMH, 2-3s LiPo
Suitable vehicles: 1/10 on road and off road cars, trucks, short course
Operation Environment: Waterproof design allows running in nearly any environment
On Resistance: 0.0007 ohm
Length: 44mm
Width: 32mm
Height: 37mm
Weight: 95g
ZTW 3450kv 540 4 Pole Sensorless SL3650 2.5Y Brushless motor
ZTW SL3650 series sensorless motors are designed from the ground up using the best quality components available. High grade aluminum alloy cases are CNC machined and hard anodised for a tough finish. High temp wire and NdFeB rotor magnets rated to 180 degrees Celcius, heat treated stainless steel shaft, 0.2mm thick silicon steel plate stator for the lowest eddy current loss, machine balanced rotor and precision quality bearings provide you with a smooth running and trouble free motor, with outstanding efficiency and power.
:SPECIFICATIONS:
Magnet pole: 4 pole
Max Power: 1200 Watt
KV: 3450
Max current: 73Amp
Max Voltage: 14.5Volt
Rotor: 18.5mm
Outside Diameter: 36mm
Shaft Diameter: 3.175mm
Body Length: 50mm
Output shaft length: 15mm
Weight: 160g
