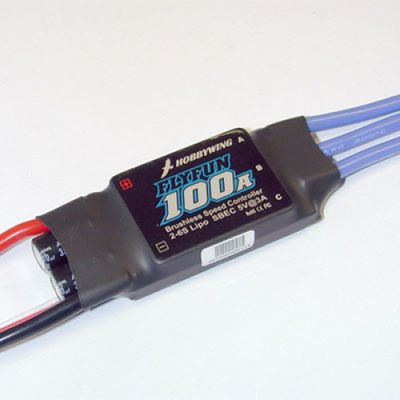

Hobby Wing Flyfun 100amp Esc V4
-
Brand:HOBBYWING
Specifications
Dimensions: 83mm x 31mm x 16mm
Battery Cell: Lipo: 2-6, NiMh / Nicd: 5-18
Continuous Current: 100A
Burst Current (>10s): 120A
User Programmable: Available
Net Weight: 73g
Features
Extrme low output resistance, super current endurance.
Multiple protection features: Low voltage cut-off protection / over-heart protection / throttle signal loss protection.
3 start modes: Normal / Soft / Super-Soft compatible with fixed-wing aircraft and helicopter.
Throttle range can be configured to be compatible with all transmitters.
Smooth, linear and precise throttle response.
Separate voltage regulator IC for microprocessor (except FLYFUN-6A and FLYFUN-10A) with good anti-jamming capability.
Maximum speed: 210000 RPM (2 poles motor), 70000 RPM (6 poles motor), 35000 RPM (12 poles motor).
The pocket-sized Program Card can be purchased separately for easily programming the ESC at flying field.
With a program card, user can activate the music playing function of the ESC, and totally there are 15 rhythms can be selected.
