Sbach 1425mm For .55 Eng
Model:
PHSBACH-55
Price:
$345.00
-
Brand:phoenix
Availability:
Out of Stock

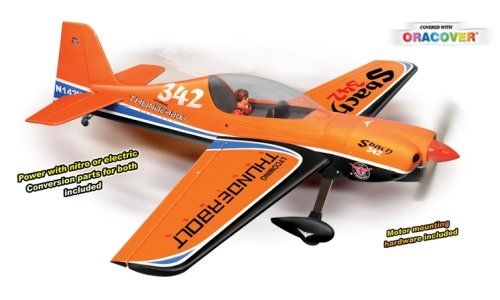

Phoenix Sbach Aerobatic Model 55 Size Engine PHSBACH-55
Introducing
The XtremeAir Sbach 342 is a German high performance two-seat aerobatic and touring monoplane designed by Philipp Steinbach with Albert Mylius and built by XtremeAir GmbH of Hecklingen
Phoenix’s Sbach 342 is naturally slower but is engineered to perform equally thrilling maneuvers! scale-like model able to perform flat spin, knife edge and many other difficult aerobatics. The Sbach is expertly handcrafted from balsa and plywood using only epoxy and CA glues. You can fly this plane after few hours of installation. All the hardware are included (servo wire, fuel tank, wheel/landing gear, etc). You only need to separately purchase the nitro engine and radio system.
Technical data
Wingspan: 1405mm (55.3 in)
Length: 1405mm (55.3 in)
Flying weight: 2800-3000 gr
Wing area: 39.4 dm2
Wing loading: 71g/dm2
Wing type: Naca airfoils
Covering type: Genuine ORACOVER®
Gear type: Aluminum Hi-grade for main gear and spring wire for tail gear (included)
Spinner size: Plastic 58mm (included)
Radio: 4 channel minimum (not included)
Servo: 5 standard servo: 2 aileron; 1 elevator; 1 rudder; 1 throttle (not included)
Recommended receiver battery: 4.8-6V / 800-1200mAh NiMH (not included)
Servo mount: 21mm x 42 mm
Propeller: suit with your engine
Engine: .46-.55 / 2-stroke or .52/4-stroke glow engine (not included)
Motor: brushless outrunner 1000-1400 W, 480 KV (not included)
Gravity CG: 95-100 mm (3.7-3.9 in) Back from the leading edge of the wing, at the fuselage
Control throw Ailerons: Low: 10mm up/down, 10% expo; High: 12mm up/down, 10% expo
Control throw Elevators: Low: 10mm up/down, 12% expo; High: 12mm up/down, 12% expo
Control throw Rudder: Low: 25mm right/left, 15% expo; High: 40mm right/left, 15% expo
- Experience level: Intermediate
- Plane type: Scale Aerobatic
RECOMMENDED MOTOR AND BATTERY SET UP
Motor: .46-.55 (not included)
Lipo cell: 3-6 cells / 4000 – 5500mAh (not included)
Esc: 50-80A (not included)
Feature
Capable of both precise and extreme aerobatics
Designed for compatibility with both GP and EP flight
Genuine Oracover covering
Bolt-on two-piece wing for easy transport and setup at the field
Removable canopy for easy change lipo battery and set up radio
Extremely lightweight laser-cut all-wood construction
Durable factory-painted fiberglass cowl
Prepainted pilot figure, preinstalled in cockpit
All hardware included
