Ezrun Max8 150amp Esc Dual Trx Plug
Model:
HW30103201
Price:
$221.00
-
Brand:HOBBYWING
Availability:
Out of Stock

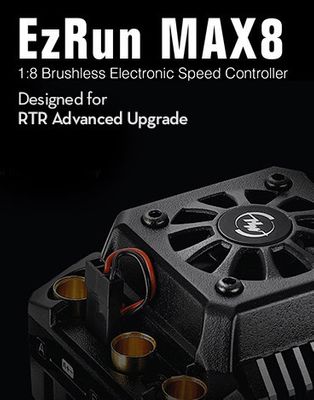

The 6S LiPo-compatible and 150A rated ESC is usable with sensored and sensorless motors and it offers a selectable 6V or 7.2V high-output BEC system to feed the latest breed of high-voltage servos. Thanks to its dust and water protection the controller will withstand nearly every racing and bashing condition which is further helped by the standard electric switch that is much more reliable than standard mechanical switches. The controller comes pre-soldered with T-plug or Traxxas TRX-style connectors and its case incorporates 6.5mm gold-plated bullet-type connector tubes while offering Traxxas-compatible mounting lugs for a secure fitment on many chassis.
Technical Specification
- Output: Continuous 150A, burst 950A.
- Motor Type: Sensored / Sensorless Brushless Motor (only in sensorless mode)
- Motor Limit with 4S LiPo/12 cells NiMH: KV≤3000 (4274 size motor)
- Motor Limit with 6S LiPo/18 cells NiMH:KV≤2400 (4274 size motor)
- LiPo / NiMH Cells: 3-6S LiPo / 9-18S NiMH
- BEC Output: 6V/7.2V Switchable, continuous current of 6A (Switch-mode BEC)
- Cooling Fan: Powered by the stable BEC voltage of 6V/7.2V
- Programming Port: FAN/PRG Port
- Size: 60 x 48 x 37 mm
- Weight: 173.5g
- HobbyWing EZRUN MAX8 150A Waterproof Brushless ESC T-Plug Black For 1/8 x1pc
- LED program box x1pc
- Electronic switch x1pc
