Hitec 805bb Ls Servo
Model:
HTHS-805BB
Price:
$60.00
-
Brand:hitec
Availability:
Out of Stock

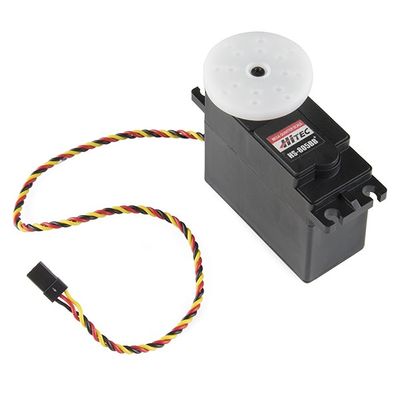

This beast is the Hitec HS-805BB servo. Able to take in 6 volts and deliver an impressive 343 oz-in. of maximum torque at 0.14 sec/60°, this is a heavy duty servo and is not to be taken lightly!
This high quality servo is perfect for your mechatronic needs and if you are looking to get into robotics, this is where to start. The HS-805BB servo comes standard with a 3-pin power and control cable, Y-harness, and all hardware listed below.
Note: This servo can draw around 800mA, so keep that in mind when planning a power supply.
Features:
- Voltage: 4.8-6.0 Volts
- Torque: 274/343 oz-in. 19.8/24.7kg (4.8/6.0V)
- Speed: 0.19/0.14 sec/60° (4.8/6.0V)
- Direction: Clockwise/ Pulse Traveling 1500-1900usec
- Rotation: 180°
- Dual Ball Bearing
- Heavy Duty Nylon Gears
- 3-Pole Ferrite Motor
- D1 Heavy Duty Spline
Includes:
- 1x HS-805BB Servo
- 1x Y-Harness
- 1x Circle Mega Horn
- 1x Four Point Mega Horn
- 1x Single Arm Mega Horn
- 4x Rubber Grommets
- 4x 2x15mm Phillips Screw
- 4x Brass Eyelets
Dimensions:
- 66 x 30 x 57.6mm
- Wire Length: 300mm
- Weight: 152g
