Z-s1079 Rc4wd 1/10 Warn 9.5cti Winch
Model:
Z-S1079
Price:
$78.00
-
Brand:RC4WD
Availability:
In Stock

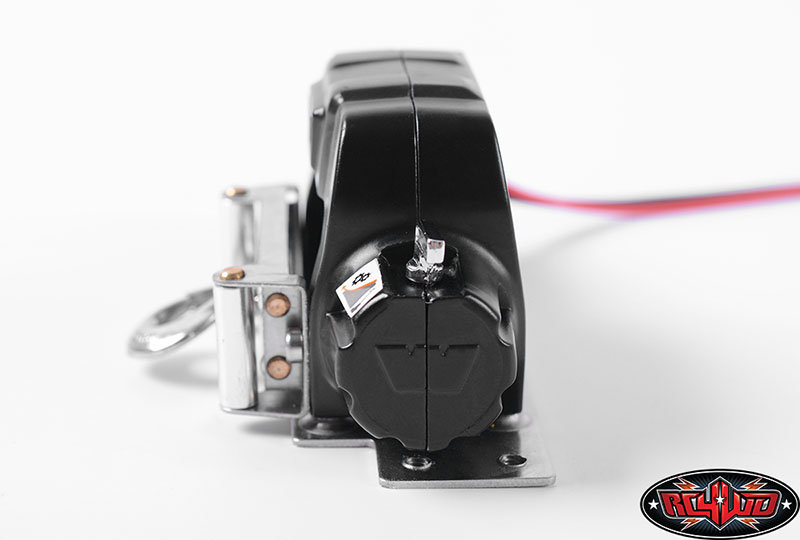

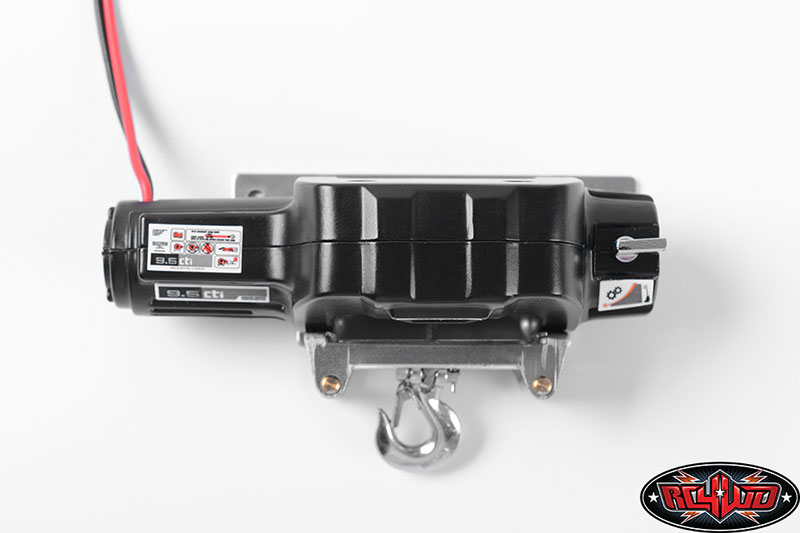

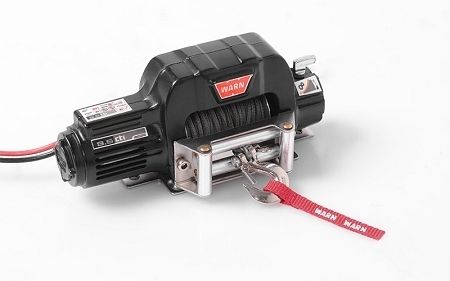

RC4WD 1/10 Warn 9.5cti Winch
One of the most iconic names in off-road. This is an all new RC4WD 1/10 Warn 9.5cti winch. This winch offers ultra scale looks, and superior quality and craftsmanship. Officially Licensed by Warn.
Specifications:
- Cast Aluminum Case
- Stamped Steel Components
- Working Spring Loaded Warn Hook
- Synthetic Winch Rope
- Highly Detailed
- Full Warn Decals Installed
- Voltage: 6v to 11.1v
- Can operate on 3 Cell Lipo
- Easily Rebuildable
- 3ft/.9M Rope Pre-Installed
- Same Mounting Locations as Bulldog Winch
- Load Limits: Dead Lift 6.6lbs/3kgs
- Load Limits: Rolling Drag 9lbs/4.1kgs
- 30 Day Warranty
- Length: 2.9in / 73.68mm
- Total Width: 1.25in / 31.75mm
- Height: 1.31in / 33.56mm
- Weight: 2.1oz / 60g

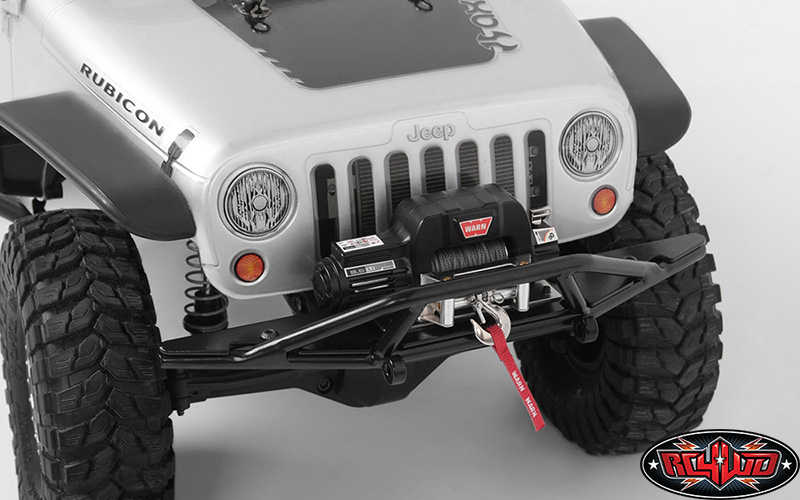

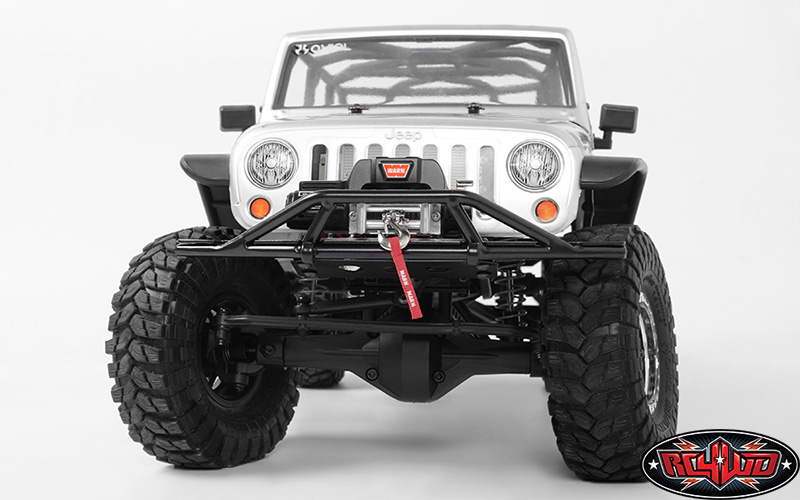

Shown on Tough Armor Winch Bumper with Grill Guard to fit Axial SCX10 (Z-S0160) and Axial Jeep Rubicon for example (Not Included)

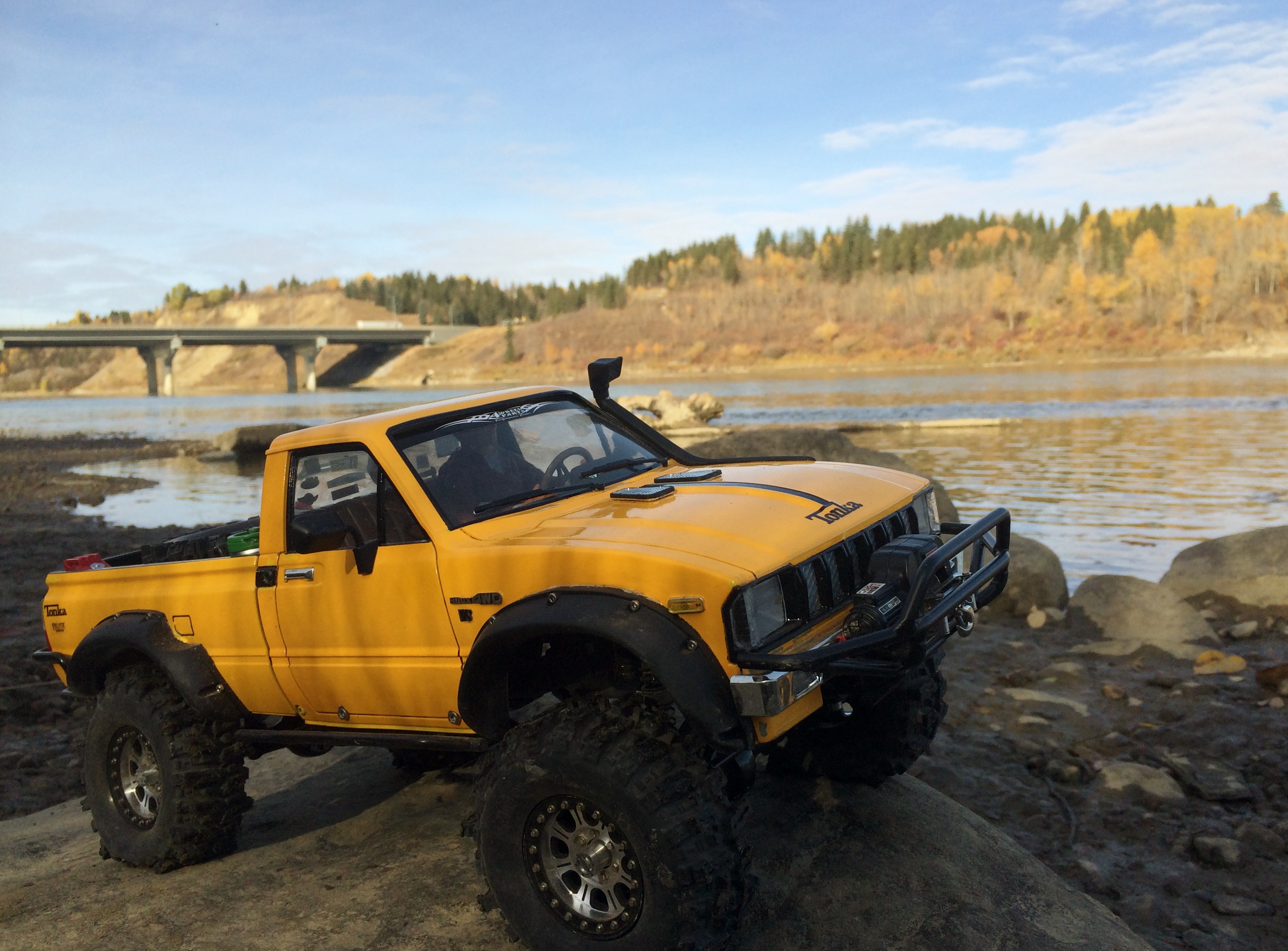

Photos below show product, submitted by customer (Not Included)
Warn Winch Mounting Plate Measurements
Shown installed with RC4WD Gelande II Truck Kit w/Cruiser Body Set (Z-K0051) for example (Not Included)
What's Included:
- 1x RC4WD 1/10 Warn 9.5cti Winch

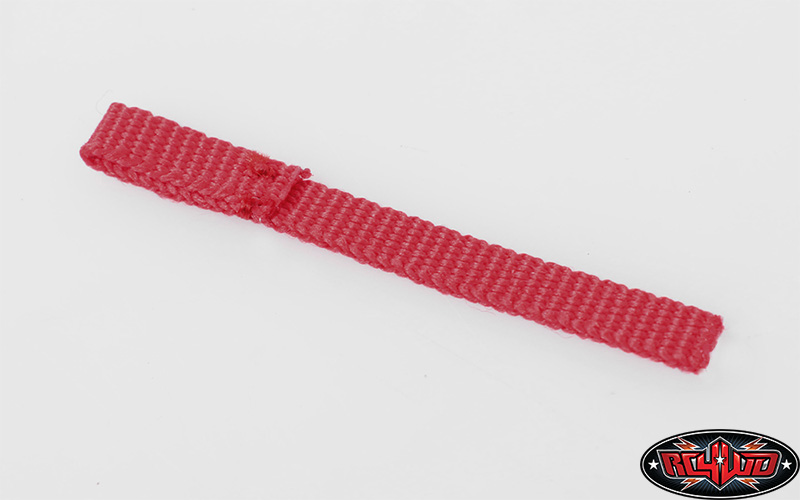

- 1x RC4WD Warn Winch Pull Tag
- 4x M2.5x4mm SHCS (Black) (Z-S0760)
- 4x M2.5x6mm SHCS (Black) (Z-S0855)
- 1x Warn Decal Sheet
Required Parts:
- RC4WD Warn 1/10 Wireless Remote/Receiver Winch Controller Set (Z-S1092)
- RC4WD Wired Winch Control Unit (Z-S1089)
Optional Parts:
- RC4WD ARB Winch Snatch Block (Z-S0341)
- RC4WD 1/10 Warn 9.5cti Winch CNC Mounting Plates (Z-S1168)
- RC4WD 1/10 Warn Hawse Polished Aluminum Fairlead (Z-S1310)
- Winch Mount for Axial Wraith (Z-S1307)
- RC4WD Marlin Crawler Front Winch Bumper for Trail Finder 2 (Z-S1496)
- RC4WD Rock Hard 4x4 Full Width Front Bumper for Axial SCX10 Jeep (Z-S1338)
- RC4WD 1/10 Viking Roller Fairlead for Warn 9.5cti Winch (Z-S1498)
- RC4WD Warn 1/10 Premium Winch Hook (Z-S1551)
- RC4WD Foldable Winch Anchor (Black) (Z-S1623)
- RC4WD Warn Rock Crawler Front Winch Bumper for Trail Finder 2 (Z-S1590) (With Mount Plate Reversed)
- Metal Front Winch Bumper for Traxxas TRX-4 Land Rover Defender D110 (VVV-C0469)
Replacement Parts:
- Replacement Motor/Gearbox for Warn 9.5cti 1/10 Winch (Z-E0051)
- 1/10 Warn Hook (Z-S1011)
- Synthetic Winch Rope (Z-S0038)
Replacement Hardware:
Notes:
- This winch requires a control unit. We offer both a wired (uses your radio's third channel) and wireless unit (hooks directly to a battery).
- This product is not waterproof. You may be able to waterproof on your own, but this will void the manufactures warranty.
- For Warnings, Precautions, Safety and Damage Limits:Click Here
- Same mounting points as our Bulldog winches
- Dead Lift is defined as the winch lifting a product from a higher position with no help from the product being lifted.
- Rolling Drag is defines as a truck using its rolling force to help the winch pull a truck or products weight.
Warranty Definition:
- This product will be free from defects in materials and workmanship and fully functional when new.
- The gearbox can handle certain weight limits. If you over load the winch, the gearbox or motor will fail. This is not considered a warranty issue. We have replacement motor/gearbox units and provide clear instructions on replacement.
Instruction Manual:
- Detailed Assembly Click Here
Warn and the Warn name are registered trademarks of Warn Industries. The Warn logo is property of Warn Industries and used under license to RC4WD.
This product has been tested and approved by the Recon G6. It is Recon G6 Certified.
