Savox Hv Digital Low/profile .15 5kg
-
Brand:SAVOX

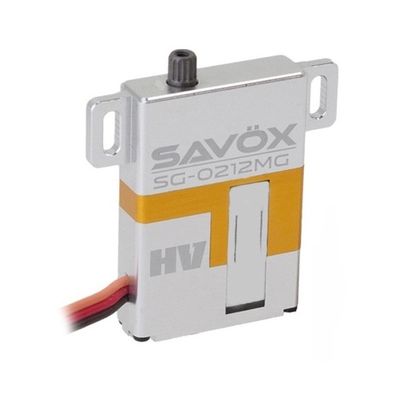

With a thickness of only 8 mm, the Savox SG-0212MG is ideal for installation in narrow wings of gliders or speed models. The high-quality all-aluminum housing with 3 attachment points can be precisely mounted and ensures good heat dissipation. To guarantee the maximum possible control accuracy of the model, a gearbox with double ball bearing has been installed.
Despite its power of 5.0 kg at 7.4 V, the total weight does not exceed 21 grams.
To simplify assembly, each servo has a robust mounting frame.
Complete the package a series of specific squares.
Technical data:
Control :: Digital
High Voltage: yes
Ball bearing: Yes - 2 pieces
Transmission: steel transmission
Case type: full metal
Approximate length: 26.0 mm
Width approx: 8 mm
Height approx: 37.5 mm Approx.
Weight: 21 gr
Input voltage : 4.8 - 7.4 volts
Speed ââat about 7.4 V: 0.1 sec / 60 degrees
Power at 7.4 V about 5.0 kg / cm
Type of motor: coreless
