High Torque Brushless Steel Gear Digital
-
Supplier url:www.savoxusa.com
SAVOX HV DIGITAL BRUSHLESS SERVO 28KG/0.095s@7.4V

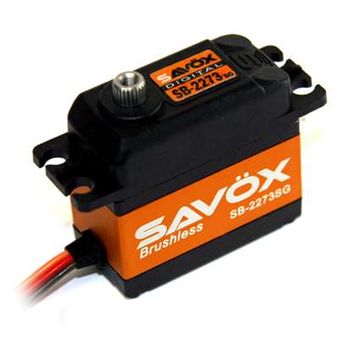

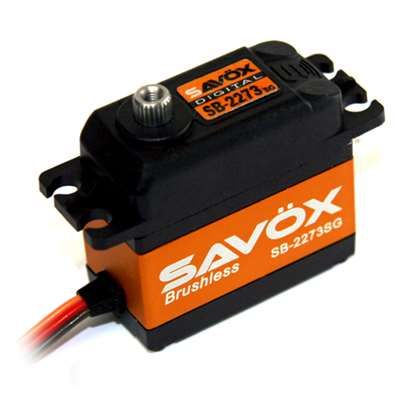

This is the Savox SA-2273SG High Speed Brushless Unique Steel Gear Digital Servo. Ideal for 1/8th or 1/10th scale trucks and buggies (electric & nitro) and giant scale aircraft. Also suitable for use in boats and helis.
SB2274SG Features:
Combines leading edge technology with super high 12 bit (4096) resolution and unique steel gears.
Super light-weight.
Brushless motor provides extremely high speed, incredible efficiency, and amazingly low power consumption.
The full aluminum case design not only looks good but also allows for cooler and smoother operating temps.
Our servos are totally green - from materials to production, these servos are environmentally friendly.
Spec Check:
Dimensions(mm): 40.3x20.2x38.5
Weight(g): 69.0
Speed(@6.0V sec/60): .12
Torque(@6.0V oz-in): 319.4
Speed(@7.4V sec/60): .095
Torque(@7.4V oz-in): 388.8
Gear: Unique Steel
Bearing: 2BB
Case: Full Aluminum
25 Tooth Spline
