Description

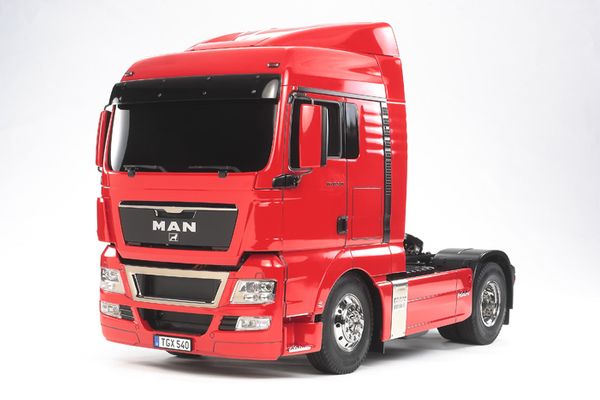

The MAN TGX 4x2 XLX is the 2-axle version of the MAN TGX 26.540 6x4 XLX.

Specifications

Scale  1/14
Construction type  assembly kit
Terrain use  on-road
Drive-train  2-axle semi
Drive type  3-speed
Drive line  solid axle
Differential type  gear
Suspension  leaf spring
Steering mechanism  bell-crank
Shock damper  friction damper
Shock damper material  aluminum
Tire type  rubber
Tire tread  radial
Body material  ABS Plastic
Chassis material  aluminum
Electronic Speed Control (ESC)   not included
ESC model  n/a
LED Light buckets  yes
LED lights  no
Motor  540-brushed type
Bearings  metal and plastic bushings
Adjustable camber  fixed
Adjustable toe angles  fixed
Adjustable ground clearance  fixed
Adjustable gear ratio  fixed
Adjustable wheelbase  fixed
Adjustable track width  fixed
Adjustable shock angle  fixed
Special feature 1  Length: 458mm, Width: 193mm, Height: 298mm, Wheelbase: 272mm.
Special feature 2  The model features a realistically replicated body and a 2-axle chassis with durable ladder frame.
Special feature 3  3-speed transmission enables authentic gear changes while driving. (Requires separately available 4-channel radio system)
Special feature 4  Metal leaf springs and friction dampers enable realistic suspension movement.
Special feature 5  Cabin tilts forward just like the actual truck.
Special feature 6  The included coupler enables connection with any currently available Tamiya 1/14 scale trailer.

Required Items:

• 7.2 Battery + Charger
• 4 Channel Radio Gear
• Electronic Speed Gear
• TS Plastic Model Paint
