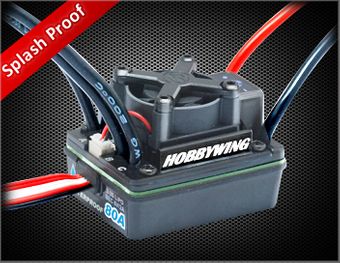

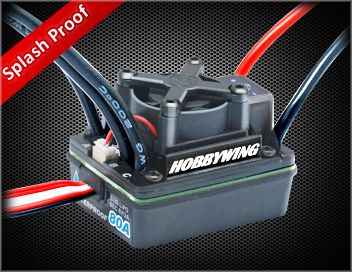

Ezrun-wp80a Splash Proof Esc
Specification
1.1 Output: Continuous 80A, burst 540A.
1.2 Input: 4-9 cells NiMH/NiCd or 2-3S LiPo.
1.3 BEC: 6V/2A (Linear mode built-in BEC).
1.4 Resistance: 0.0004 Ohm.
1.5 Motor Supported: Sensorless Brushless Motor.
1.6 Suitable Motor: * Note #1
With 4-6 cells NiMH/NiCd or 2S Lipo: On-Road/Off-road=5.5T, SCT/Monster KV=6000;
With 6-9 cells NiMH/NiCd or 3S Lipo: On-Road/Off-road=8.5T, SCT/Monster KV=4000;
1.7 Suitable Car: 1/10 on-road/buggy/truggy/SCT/monster all-weather sport racings.
1.8 Size: 46mm(L) * 34mm(W) * 35mm(H).
1.9 Weight: 82g (With wires).
* Note #1: These listed T numbers are available for 3650 sized brushless motor (Ø=36, L=50)
2 Features
2.1 Splash-proof and dust-proof. The ESC can work on the tracks with small amount of water.
2.2 Compatible with sensorless brushless motors.
2.3 High quality components, big current endurance.
2.4 Excellent start-up, acceleration and linearity features.
2.5 Plenty of programmable items, suitable for various of chassis's, tires and racing tracks.
2.6 Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection.
2.7 Internal timing can be changed easily to make the ESC suitable for various of motors.
2.8 Easily programmed with the SET button, LED Program Box, Multifunction LCD Program Box and USB Link Software.
2.9 ESC firmware can be updated through the USB adapter in the LCD Program box.
