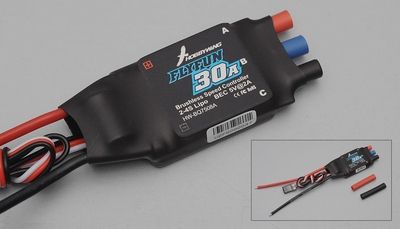

Hw Flyfun-30a V4.2-w Esc
-
Brand:HOBBYWING
Product Description
perfect for fix wing brushless motor and multi-rotor helicopters
1 Specification
1.1 Output: Continuous 30A, Burst 40A up to 10 seconds.
1.2 Input Voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NiMh battery.
1.3 BEC: 2A / 5V Linear mode BEC.
1.4 Refresh rate of the throttle signal: 50Hz to 432Hz.
1.5 Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM.
(BLM = BrushLess Motor)
1.6 Size: 55mm*25mm*9mm.
1.7 Weight: 25.8g.
2 Features
2.1 Safety arming feature: Regardless the throttle stick position, the motor will not spin after battery connected.
2.2 Throttle calibration funtion: Throttle range can be calibrated to be compatible with different transmitters.
2.3 User programmable.
2.4 Multiple program methods supported: transmitter stick, LED Program Card. Very easy to program the ESC at home or at the flying field.
2.5 Compatible with Lipo battery and NiCd/NiMH battery.
2.6 Internal timing can be changed to be suitable for different brushless motors.
2.7 Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection.
2.8 Microprocessor uses separate voltage regulator IC, with good anti-jamming capability.
