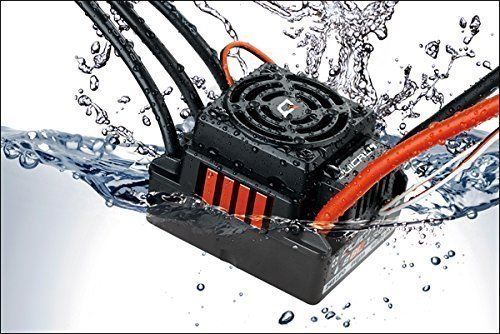

Quicrun-wp-8bl150 Brushless Esc 2-6s
Model:
HW30109000
Price:
$175.00
-
Brand:HOBBYWING
Availability:
In Stock
Feature:
- For: 1:8 Buggy/Monster
- Water-proof and dust-proof for all-weather races. (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)
- Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment.
- 9 steps of acceleration (/punch) adjustment from “soft” to “Very aggressive” to fit for different kinds of models, tires and tracks.
- Multiple protections: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor lock-up protection.
- One-button (the “SET” button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings.
- Compatible with the optional device ---- the portable Digital LED Program Card, especially convenient for outdoor use.
Specification:
- Model: QUICRUN-WP-8BL150
- Cont./Peak Current/ Resistance: 150A/950A/0.00035Ω
- Motor Type Supported: Sensorless Brushless Motor
- Car Applicable: 1:8 Buggy/Monster
- Motor Limit:
- For 4S Lipo or 12 cells NiMH:
- 4274-size or smaller motor with the KV<3000
- For 6S Lipo or 18 cells NiMH:
- 4274-size or smaller motor with the KV<2400
- Battery: 9-18 Cells NiMH 3-6S Lipo
- BEC Output: 6V/3A (Switch Mode)
- Size/ Weight: 59.5(L)*48(W)*42(H) / 178g
- External Program Port: Available
- Working voltage of Fan: From BEC (6V)
Include:
- HobbyWing QuicRun 1/8 Brushless WaterProof 150A ESC (1 Set)
- Manual (1 pc)
