Z-s1089 Wired Winch Control Unit
Model:
Z-S1089
Price:
$60.00
-
Brand:RC4WD
Availability:
In Stock

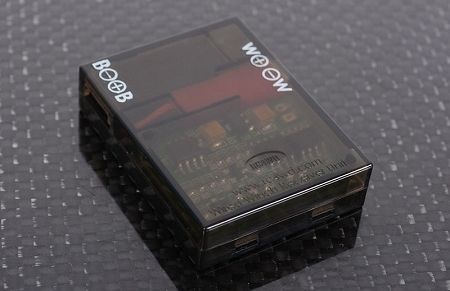

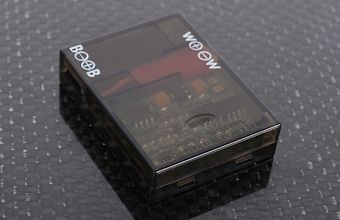

RC4WD Wired Winch Control Unit
This is the wired Winch Control Unit offered to allow operation function from your radio and receiver. This will allow you to control a winch with your remotes third channel.
Specifications:
Receiver
- Small Compact Size
- Operating Voltage 6V to 11.1V
- Requires 3 position Third Channel
- Easy Plug and Play
- Instruction Included
- Length: 1.6in / 41mm
- Width: 1.2in / 31mm
- Height: 0.39in / 10mm
- Weight: 0.35oz / 10g
Wire
- Length: 6in / 150mm
- Wires Weight: 0.14oz / 4g
Product
- 30 Day Warranty
- Manufactured by RC4WD
What's Included:
- 1x Wired Control Unit
- 1x 6" Receiver/Receiver Power Wire
- 1x 6" Receiver/Winch Control Wire
Optional Parts:
- RC4WD 1/10 Warn 9.5cti Winch (Z-S1079)
- RC4WD 1/8 Warn Zeon 10 Winch (Z-E0069)
- RC4WD 1/10 Mini Warn 9.5cti Winch (Z-S1571)
- RC4WD 1/10 Warn 8274 Winch (Z-E0075)
- For Shorter Wires 3" Wiring Pack (Z-S1001)
- For Longer Wires 9" Wiring Pack (Z-S0999)
Replacement parts:
- Spare Empty Case for Wired Control Unit (Z-S0808)
Notes:
- You will need a radio with a third channel to operate this controller.
- Your third channel needs to be a three position switch (on/off/on).
- If your radio does not have a three position switch, you can purchase a wireless controller unit. (Z-S1092)
- This product is not waterproof. You may be able to waterproof on your own, but this will void the manufactures warranty.
- For Warnings, Precautions, Safety and Damage Limits: Click Here
- If for any reason you cut the wires on the control box, this will void the warranty.
- Some Lipo battery voltage can be higher than 11.1 volts. Please be careful and check voltage before using your battery.
Instruction Manual:
- For Detailed Setup. Click Here
