Sk-600047 Sky Rc Dual Power Regulator
Model:
SK-600047
Price:
$39.95
-
Brand:sky-rc
Availability:
In Stock
INTRODUCTION

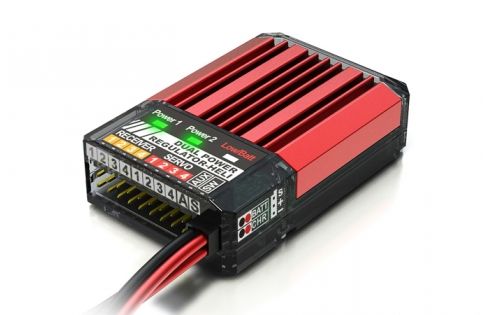

- SKYRC Dual power voltage regulator(SK-600047) is a twin linear regulator which supplies stable voltage and current to the servo directly. Due to this feature, it can meet the request of high-class users who play with utmost Extreme 3D and F3C.
- At present, Extreme 3D flying is more and more popular. As a result, the requests for high performance servos are increasing. As we know, one of the factors which influences the performance of servo is a stable power supply and transient response of the entire power system. Based on this recognition, we developed this regulator. We also added a low voltage alarm function to this item to guarantee the user's safety.
- When you use this regulator, it can supply stable power to CCPM servo channel and it can also avoid external noise caused by reverse electromotive force of CCPM servo due to the direct connection of the servo and RX and make the gyro work properly.
- It has been tested under different kinds of working conditions and after times of improvement, now it is able to work under any extreme operating environment. And we are sure you will have a wonderful experience when you use it.
PRODUCT FEATURES:
- As DC-DC voltage regulator of linear type is very popular at present, this BEC is also a linear regulator with twin channels. Compared with Switching-type, it will not make switching noises or ripples. What's more, it offers a stable voltage and current. When radical load change happens, it will respond rapidly. In this case, it is able to work with PPM, PCM and also a 2.4G system.
- During extreme 3D and F3C flight the current can reach up to 8A. The traditional method is battery supply power to servo through a receiver. In this case, you could not feel the full effect of the servo. To let the servo work effectively, we designed this regulator which is applied with a reboost power bus to supply power to servo directly
- Normally, the same two regulators are packed into one case so that the electronic performance, such as servo, ESC, and gyro, does not fully work. To improve this, we use a twin output design: one is for CCPM servo and the other is for RX and gyro. The circuit of servo controls the power and responsibility while the circuit of RX and gyro controls the voltage stability and is noise-free. You have five choices of the output voltage 5.2V, 6.0V, 6.8V, 7.4V, 8.4V(Bypass) which can be set up by a DIP switch. As this parameter is stored in it, extra voltage measurement is not needed.
- We added a Low Voltage alarm to this item which you can choose whether or not to use. The voltage options are 6.5V or 7.3V due to the characteristics of the battery.
- When the battery voltage is below the regulator setup voltage, the Low Voltage Alarm will responsd. The LOW/BATT LED and the buzzer will begin to work at the same time. We have also develop an external LED board with Pin-Flag power switch which can be mounted to the fuselage to perform the Low Voltage alarm. The high power LED on the external board will blink when the voltage is low. So it is possible to immediately recognize the low voltage alarm conditions even in day flight.

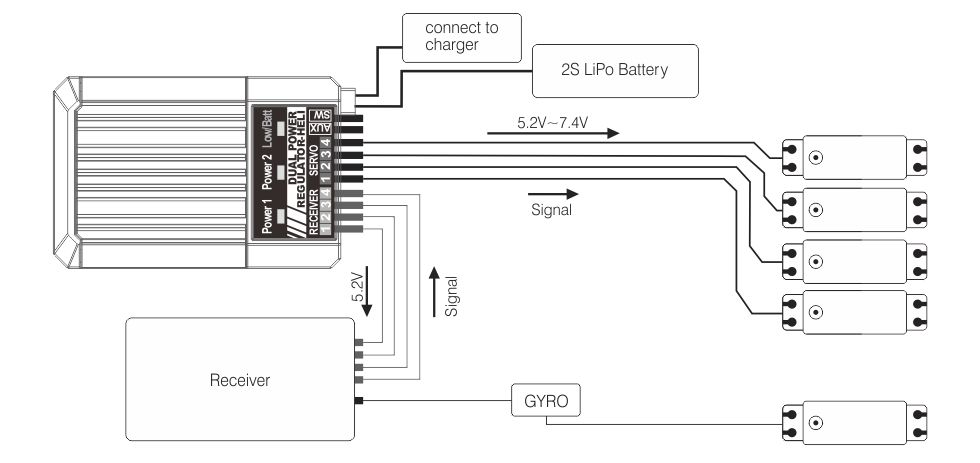

- There are input/output ports for four channels as three servos for CCPM and one for the throttle. It supports a 7.4V HV servo. If the output voltage is setup to 7.4V or 8.4V(Bypass), it is able to achieve a more stable power supply and transient response than directly connecting 7.4V battery scheme.
- A charging and voltage checking cable is integrated for your convenience. You can charge the battery through that cable.
- Dual battery input is supported for experienced users. If additional battery is connected with charging and voltage checking cable, two battery powers can be supplied to the regulator in parallel. (Both batteries must be identical, same chemistry, voltage and capacity).
Package list:
1*SKYRC Dual power voltage linear regulator .
