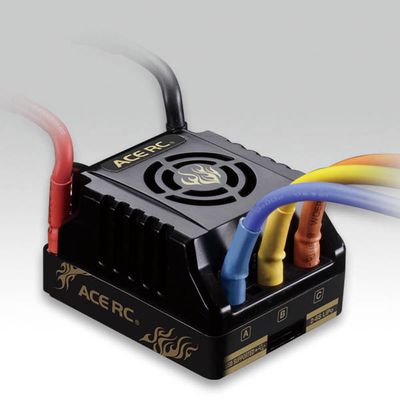

Ttr 150amp B/l Esc
-
Brand:THUNDER TIGER
1/8 Scale Affordable Brushless System Now Is Available!
Thunder Tiger Corp. is pleased to announce the brand new ACE RC brushless speed control and motor for 1/8 scale R/C vehicles. ESC is now available in 80A and 150A, in which the former is perfectly used for buggy and truggy while the latter is mainly used for power-on-demand monster trucks as well as 1/5 scale. The ACE RC IBL4020 2000Kv super brushless system not only provides amazing torque and speed potential for your 1/8 scale vehicle, but supplies a longer operation time due to less friction in the brushless motor compared with other sensored systems. Also ACE RC brushless speed control is compatible with all sensorless brushless motors and most of sensored brushless motors such as Novak, LPP, Feigao and etc. Moreover, ESC is bullet-proof itself with other multiple protection features such as voltage cut-off protection, over-heat protection, throttle signal loss protection, motor blocked protection and splash/dust proof cover. Our customer would breeze through the system setup with the programming card.
1 Specification
1.1 Output: Continuous current 150A, burst current 950A.
1.2 Input: 6-18 cells NiMH/NiCd or 2-6 cells LiPo.
1.3 BEC Output: 5.75V/3A (Switch mode built-in BEC).
1.4 Resistance: 0.0002 Ohm.
1.5 Motor Supported: Sensorless and sensored brushless motors
1.6 Suitable Brushless Motor:
When working with 4 cells Lipo: >= 4.5T (KV<=3000)
When working with 6 cells Lipo: >= 6.0T (KV<=2400)
The above T number is the value of a 4274 sized motor (Diameter=42mm, Length=74mm)
1.7 Suitable Car: 1/8 Buggy / Truggy / Monster.
1.8 Size: 58mm(L) * 46.5mm(W) * 35mm(H).
1.9 Weight: 105g(Without wires)
1.1 Compatible with all sensorless brushless motors and most of sensored brushless motors such as Novak, LRP and Feigao, etc.
1.2 Excellent start-up, acceleration and linearity features.
1.3 3 running modes (Forward only with brake, Forward/Reverse with brake, Forward/Reverse immediately)
1.4 4 steps of maximum reverse force adjustment.
1.5 Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment and 4 steps of initial brake force adjustment.
1.6 9 start modes (Also called “Punch”) from “very soft (Level 1)” to “very aggressive (Level 9)”.
1.7 Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor blocked protection.
1.8 8 steps of timing adjustment by software.
1.9 Built-in switch mode BEC has a powerful output to supply all the electronic equipments.
1.10 Easily program with only one button and compatible with pocket-sized Program Card.
1.11 Firmware can be updated through an USB adapter (Optional equipment).
1.12 Splash proof and dustproof.
1.13 Stable and reliable.
