Vortex R10 Sc Brushless
-
Supplier url:http://www.teamorion.com/?sl=EN

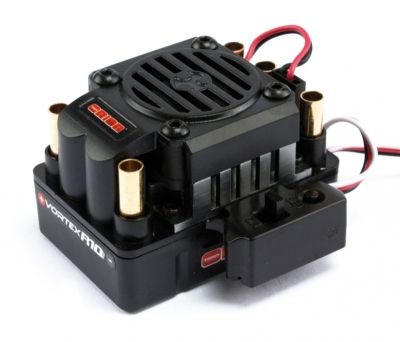

Team Orion BL-S Controller R10 Vortex SC 100A 2-3S ORI65108
Specifications
Input Voltage: 7.4 - 11.1 V / 2-3 LiPo cells,
BEC receiver power supply: 6V / 3A;
Continuous Current: 100A;
Max Surge Current: 520A; Max,
KV: 3000,
Weight: 74g,
Dimensions: 53 , 5x36x36mm;
BL system: sensor control / sensor-2-pole;
functions: Forward - Brakes / Forward - Brake - reverse;
Min number of motor-windings: 12T RC
Vortex R10SC S Controller Race Team Orion!
The ever-growing category of 1 / 10 Short Course Trucks demands ever more powerful and better controlled, high-performance controllers.
The all-new Team Orion Vortex R10SC S controller was developed in long series of tests from Team Orion R & D department for mass production. Whether 2WD or 4WD model. The R10SC S offers for each category, the appropriate setup options.
About the programming card or via USB cable, the driver has the option to change all the parameters individually and create your own profile. This feature is recommended, however, only for absolute professional racers.
The weight-optimized design with integrated fan provides a very low center of gravity and thus a much better road holding of the model. Then add the Vortex R10SC S seamlessly into the modern concept of competition vehicles.
The controller is programmed at delivery with a standard setup. The adaptation to the remote control is the first time you power up. In just a few steps, all parameters are recorded and it's ready! Incredible top speed, acceleration and breathtaking driving pleasure in a new dimension.
By using an appropriate Team Orion LiPo Car Batteries, and our VST Vortex engines resulting driving performance that they immediately catapulted to the top of the competition. With the Vortex R10SC S sets the benchmark for the Orion team established competitors is very high. Through the innovative features and superior performance values ââis the vortex R10SC S controller currently the measure of all things ...!
Features • High-performance brushless controller for Short Course Trucks • For sensor-operated and sensor-less 2-pole motors
• Special software for Short Course Trucks
• Extremely high Efficiency
• Extensive parameter menu
• Simple programming
• Supplied with standard set-up
• Compact and lightweight carbon design
• Elegant • Simple programming via the setup button on the switch
• For 2S-3S batteries
• Built-in capacitors and fan
• Forward / Brake or Forward / Brake / Reverse function target beginners, advanced & professional
